Underfloor Infrared Heating Film, 150 Watts/sq.m, 210-240V, width 50 cm, production ENERPIA DAEWOO of South Korea. It has 10 years manufacturer warranty. Life time is 30 years.

Price for 1 sq.m

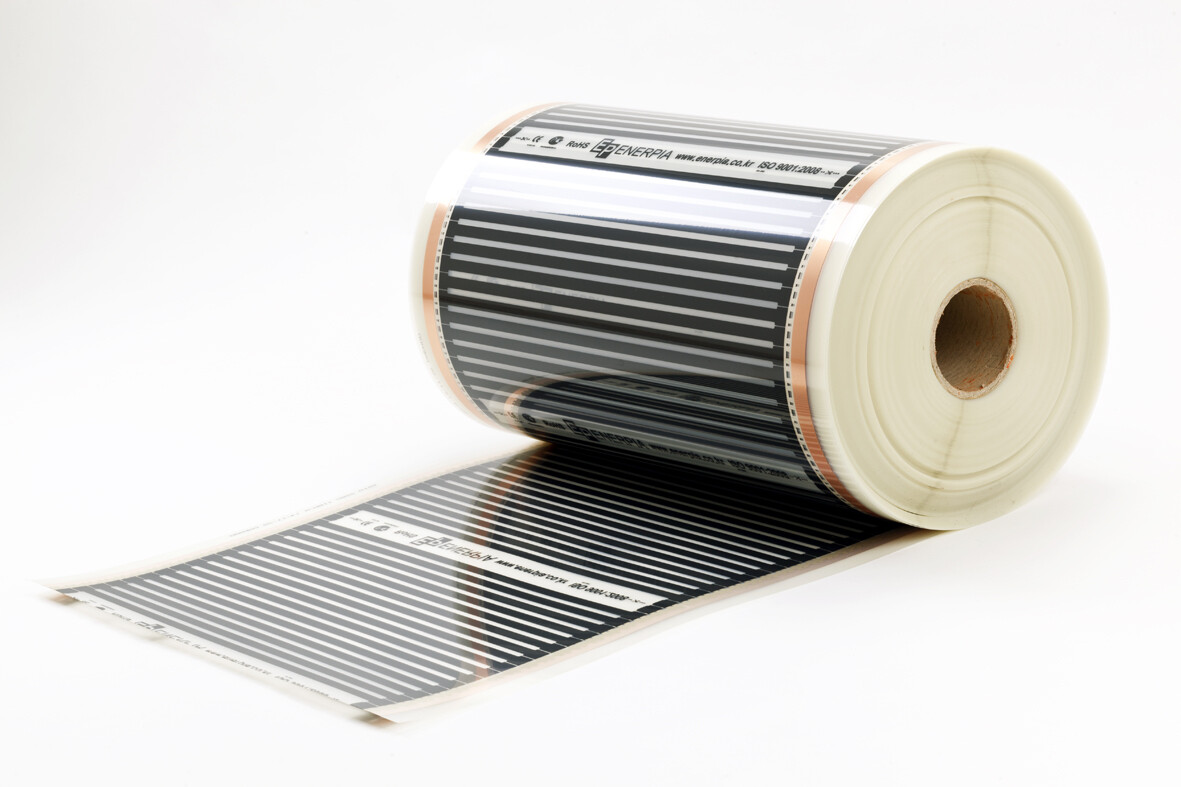

ENERPIA Electric Heating Film is produced by accurate (under 1 micron) printing technology by coating carbon on PET film to radiate heat. The film is so strong that you can not cut it without scissors because the material was heat-treated over 150℃.

▶ Structure

Steady temperature range and resistance variation

• Coating high density carbon particle
• Cutting edge doping technology for uniformly printed surface
• Continuous development of special equipment for heating film
• World class film with the character of insulation and anti-flame
• Preventing spark on carbon surface by specialized design
• Special waterproof treatment
• Laminated insulation film

Enerpia Daewoo Film Heater using the high efficient radiant heat

It is an innovative heating system that is made with gravure printing of heat generating carbon tissue on PET Film and copper busbar. Since it emits far infrared rays and anions, warm radiant heat can be felt for a well-being life.

This film is ideal for during the certain time for the sectional space that needs to be heated because it requires a short period of time to make heat so suitable for customer, accommodation, office, church, restaurant, and stairs. For stable use, we recommend you to use the hardwood as the finishing material.

If you are using for the linoleum finishing or humid environment, you need to consult with a construction company.

BENEFITS OF ENERPIA HEATING FILM

1. Energy can be saved more than 65%.(On regular basis)
2. Exudes a healthy infrared heat (Far infrared radiation (90.3%) and anions (250cc) are emitted to improve health)
3. Don’t worry about smoke, noise, fueling, freezing.
4. Does not dry the air
5. Do not burn oxygen
6. Does not cause allergies
7. Convenient control such as sectional heating, central heating and sectional control
8. No need space for boiler
9. Fast installation without taking off the existing floor
10. One day installation and immediately usable
11. Installation without the use of cement screed
12. Free to choose of finishing materials
13. It can lower the height of ceiling and the weight of building.

FEATURES OF ENERPIA HEATING FILM

1. Burning resist PET application : The ivory PET Film is used the XB-65 with VTH-2 chip in for heat defying

insulation which has the UL Certificate and is manufactured by Doraysaeghan.

2. Gravure printing : As screen printing cannot print carbon tissue evenly, it is inappropriate for the heat generating

plate. It can be partially overheated to cause fire and short circuit. We, however, have chosen the gravure rotary

printing press to pursue to the safety by giving electric resistance evenly to the Heat Generating Plate.

3. Wide silver space : The silver space is for the space between carbon and copper busbar where the electrical

energy is converted to thermal energy. This space prevent spark, and is important part related to product life and

safety. We broadened this space for safety.

4. Copper busbar with 12mm of width and 10amp : Wide copper busbar to restrain overheating. The thinner PET has

superior adhesive strength and keeps air cut.

You can buy any quantity of Far Infrared Rays Carbon heating film!

To get more detailed information, please write to e-mail

On this link you can download the instructions Instalation heating film
